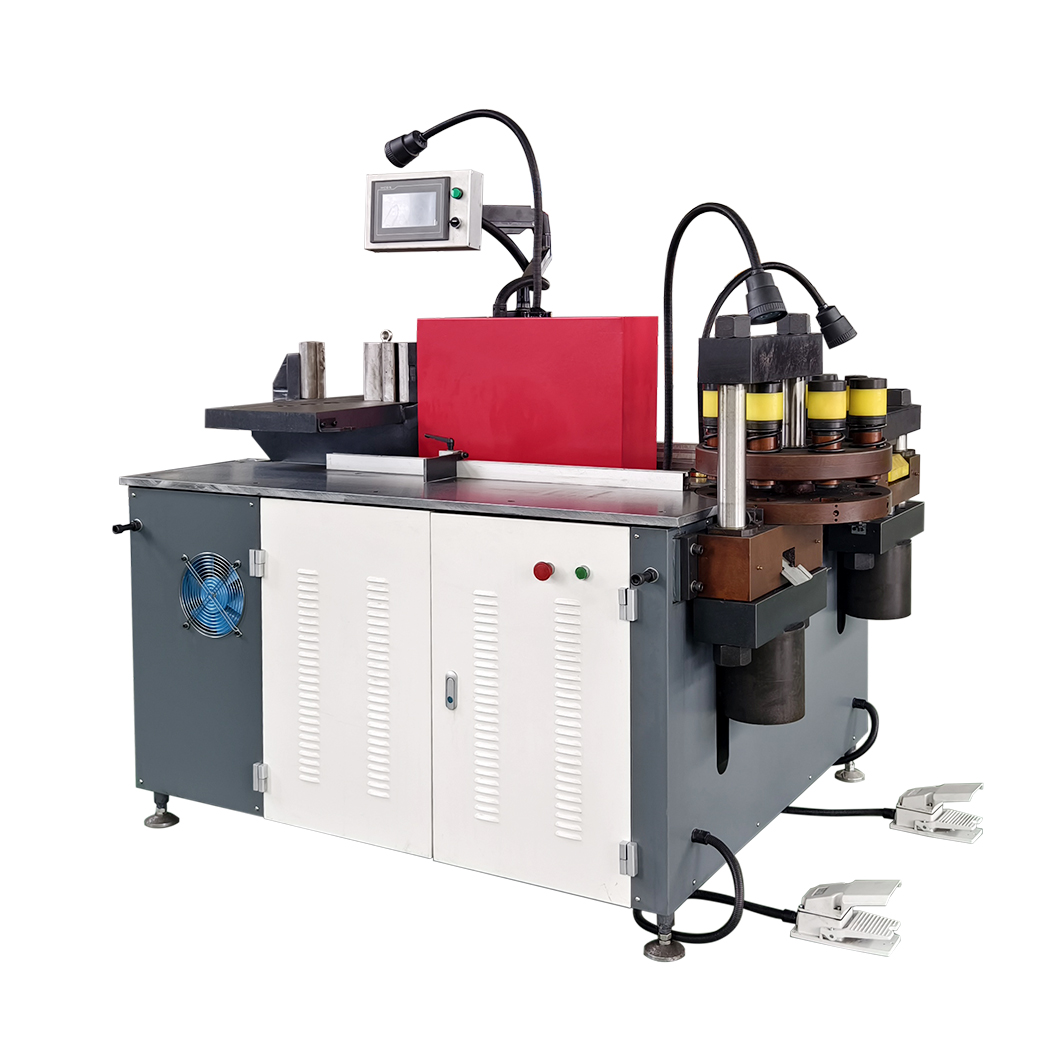

DH303-8P WORKSTATION
3-in-1 Workstation | Punch · Shear · Bend · All in One
Compact 3-in-1 multi-function busbar processing center. Punch, shear, and bend simultaneously with three independent hydraulic pumps. Featuring automated touchscreen blanking calculations, zero-waste shearing, and low-noise operations.
Certification
CE / ISO 9001
Stock Availability
Ready in Stock
Hydraulic Pumps
3 × 31.5 MPa
⚡ Sourcing Summary: DH303-8P 3-in-1 Workstation
What Technical Specifications Define the DH303-8P 3-in-1 CNC Busbar Processing Machine?
Cross-reference our rigid engineering boundaries on the right while discovering core mechanical advantages on the left.
INTERACTIVE 3-IN-1 WORKFLOW DEMONSTRATION
Discover how the DH303-8P delivers rapid batch processing across three completely independent stations, avoiding time-wasting tool setups.
1. PUNCHING STAGE: 8-STATION TURRET
The multi-station turret structure avoids frequent die changes. Featuring 7 punching and 1 embossing die sets configured simultaneously in a thick ductile iron index head, reducing setup delays to zero.
2. SHEARING STAGE: ZERO-WASTE SINGLE-CUT
Dual column guide shearing frame delivers vertical downward force. Zero-waste single-cut mechanism completely eliminates copper off-cut scrap slivers, ensuring perfectly straight, burr-free edges.
3. BENDING STAGE: DUAL HMI STROKE CALIBRATION
Ductile iron open-frame bending unit provides a full 360° visibility. Siemens PLC registers linear travel values, calculating springback angles automatically to maintain high ±0.5° verticality tolerances.
1 UNIFIED DH303-8P VS 3 STANDALONE UNITS
Sourcing a compact multi-function center vs equipping separate hydraulic lines:
- • High Footprint: Needs 12 sqm floor
- • Multi-Pump: High electrical load
- • Setup Costs: Three separate shipments
- • Cumulative Sourcing Overhead
- • Compact Footprint: Only 2.4 sqm
- • Single 3-Pump Unit (low load)
- • 1 Shipping Crate (Fully Pre-Calibrated)
- • Highly Competitive Sourcing Rate
Standard Included Tooling Package
Flat Bending Die Set
Radius R4 & R8 punches (1 set)
Vertical Bending Die Set
Precision alignment blocks (1 pair)
Round Hole Punching Dies
Φ9, Φ11, Φ13, Φ15, Φ17 (1 pair each)
Oblong Hole Punching Dies
11×15 & 13×17 (1 pair each)
Embossing Die Package
Industrial quality (1 pair)
Zero-Waste Shearing Die
Column guide single-cut (1 pair)
B2B Sourcing & Customization Guide
Our direct-factory procurement plan for the DH303-8P ensures high-value return. The final FOB, CIF, or DAP custom invoice is tailored based on:
- Motor Windings: Custom three-phase grid matching pre-calibrated to your regional standard (e.g. 220V/60Hz, 380V/60Hz, 440V/60Hz).
- Custom Tooling Dies: Custom shapes, slots, or unique copper embossing engraving stamps.
- Logistics Protocols: Turnkey wooden box packing and CIF/DAP customs clearance directly to your regional seaport.
DH303-8P Specifications
Verification standard: ISO 9001:2015How Does DH CNC Solve Common 3-in-1 Busbar Processing Production Bottlenecks?
How DH CNC drives multi-operator performance and eases blanking calculations on the shop Floor.
PAIN POINT: System Pressure Drop During Simultaneous Multi-Operator Use
Standard entry-level 3-in-1 machines share a single or dual hydraulic pump. When three operators attempt to punch, shear, and bend at the same time, fluid pressure collapses, stalling the machine and risking pump burnout.
DH CNC SOLUTION
3 Independent Pumps & Motors. The DH303-8P is designed with a robust triple-hydraulic circuit (3×31.5 MPa) powered by 4 independent motors. Three operators can work simultaneously at full capacity with zero pressure interference.
PAIN POINT: Dependence on Highly Skilled Operators for Blanking Calculations
Calculating the flat blanking length of copper bars before bending requires complex trigonometry to offset thickness deformation. Manual math errors lead to discarded copper and slower run times.
DH CNC SOLUTION
Smart Touchscreen HMI. The integrated Siemens HMI features automated blanking calculations. Operators simply enter drawing specifications (lengths L1-L4 and target angles), and the system automatically calculates the flat layout, punch positions, and bending strokes.
PAIN POINT: Poor Workpiece Visibility & High Swap Times on Closed Benders
Standard closed-type bending units (with top bars and screws) block the operator's view of the bend point. Aligning markings is difficult, and swapping dies takes 15-20 minutes, reducing custom batch throughput.
DH CNC SOLUTION
Ductile Iron Open-Type Bending. Our bending unit features an open cast ductile iron frame. It provides full 360° visibility for easy alignment and allows tooling swaps for flat, vertical, or U-bends in under 2 minutes.
Which Industrial-Grade Components Power the DH303-8P?
Industrial-grade elements sourced strictly from globally verified Siemens, Inovance, and high-pressure hydraulic supply chains.
How Does the DH303-8P Compare Against Traditional Multi-Function Machines in Total Cost of Ownership?
Compare the DH303-8P against standard entry-level benders. Make an informed procurement decision.
| Performance Metric | DH303-8P Solution | Traditional Bending Machines |
|---|---|---|
| Hydraulic System Drive | 3 Independent Pumps (3×31.5 MPa) | 1 or 2 Shared Pumps (pressure drops) |
| Simultaneous Operations | 3 Operators at full capacity | 1 operator or multi-lag delays |
| Bending Frame Structure | Ductile Iron Open-Cast | Welded Steel Closed-Type (poor visibility) |
| Turret Punch Stations | 8-Station Turret | 6-Station manual index |
| Shearing Mode Quality | Single-Shear (Zero waste, burr-free) | Double-cut (produces scrap slivers) |
| Blanking Length Calculations | Automated HMI Smart Calculation | Manual trigonometry estimation |
| Operational Noise | Idle ≤40 dB / Load ≤70 dB | Idle ≥55 dB / Load ≥85 dB |
What Is the Operator Learning Curve, ROI, and Global Application Scope of the DH303-8P?
An engineering-focused evaluation of the DH303-8P 3-in-1 busbar processor's operational workflow, tooling economics, and regional voltage configurations.
Simultaneous Workstations & HMI Simplicity
Standard 3-in-1 multi-stations often share a single hydraulic circuit, causing pressure drops and forcing operators to wait. The **DH303-8P workstation** features three independent hydraulic pump and motor units (3×31.5 MPa). Bending, punching, and cutting stations operate simultaneously and at full speed, eliminating assembly line bottlenecks.
The built-in HMI touchscreen simplifies setup. Operators input copper busbar thickness and desired bend angles, and the system automatically calculates coordinates and stroke positions. Setup time and manual calculations are reduced to near zero, shortening the **operator learning curve to under 4 hours**.
45% Capital Savings & Space Optimization
Purchasing individual standalone bending, punching, and shearing machines increases equipment acquisition costs, footprint, and maintenance overhead. The DH303-8P delivers three dedicated, industrial-grade stations on a single compact footprint, **saving up to 45% in capital expenditure** and freeing up floor space.
The unified, heavy-duty cast monoblock frame prevents alignment drift during transport. This ensures perfect calibration out of the box and **saves $3,000–$5,000 in third-party technician calibration fees** upon delivery.
Switchgear Enclosures & Grid Compatibility
Perfect for low-voltage switchboard assembly, high/low voltage switchgear enclosures, custom control panels, and transformer winding workshops. It cuts and punches copper busbar stock up to 12mm thick with absolute repeatability.
Every system is custom-configured at our factory to match your local power infrastructure, pre-wiring motors and starters for **220V/440V 60Hz** (Mexico & LATAM), **480V 60Hz** (USA & Canada), and **380V/400V 50Hz** (Europe, Asia, Middle East). Shipped in seaworthy vacuum rust-barrier bags inside reinforced non-fumigation wood crates. For technical details on frequency matching, read our Technical Case Study: Power Grid Voltage Modifications for Latin American Industrial Deployments.
DH303-8P Visual Quality Audit
Explore actual HMI touchscreen pages, industrial workstation modules, and finished machined copper parts directly from our production floor.
Touch CNC HMI & Bending Calculations Audit
Visual documentation of the pre-loaded 3-in-1 coordinates, blanking calculations, real-time cylinder pressure, and automated calibration diagnostics screen.

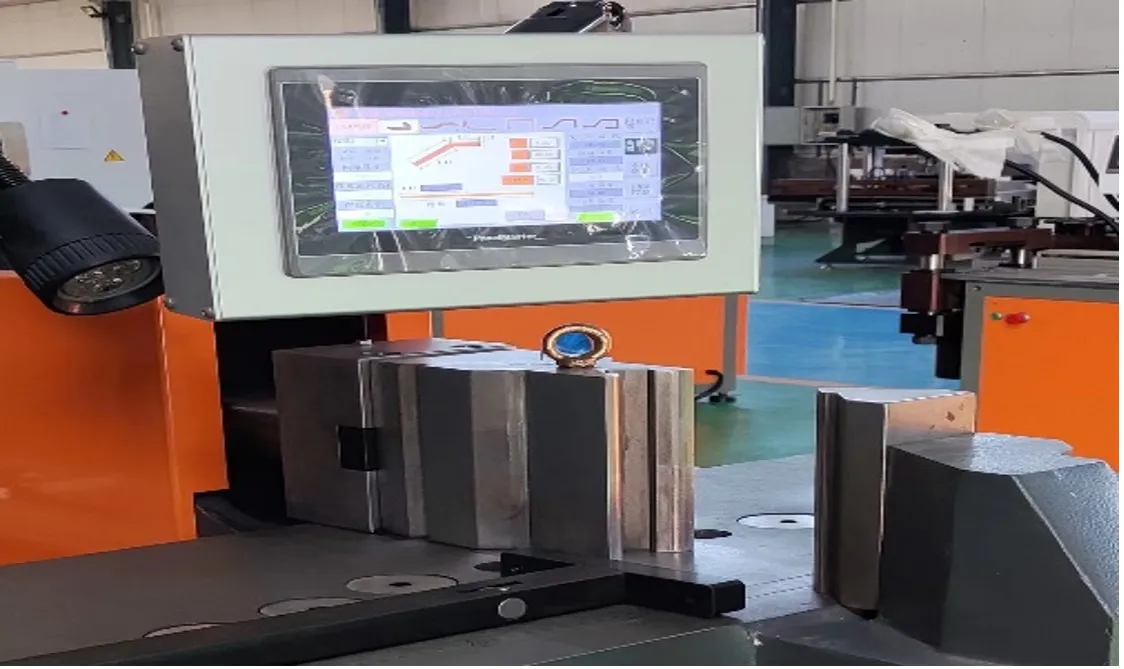

Dynamic UI Dashboard
Siemens-powered home interface detailing active stations, oil temperature indicators, and stroke cycle counters.

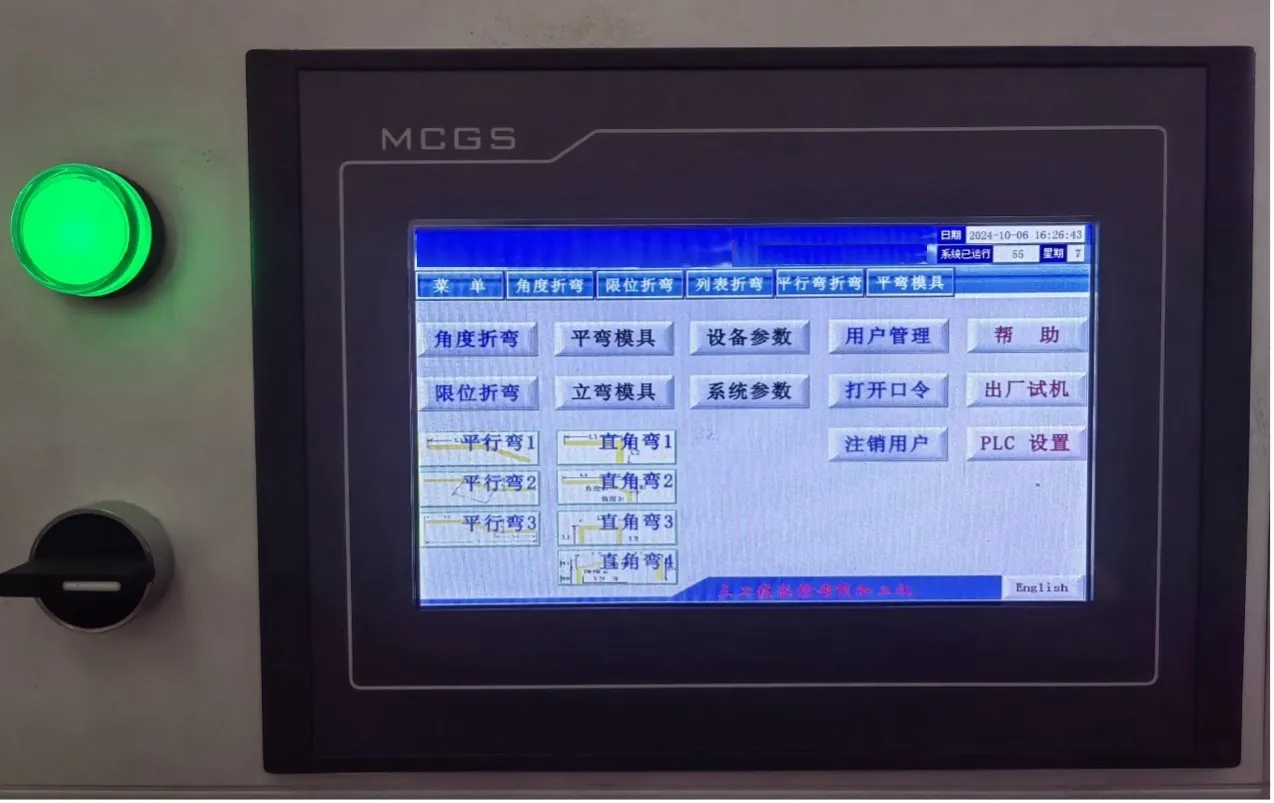

Automatic Blanking Calculator
HMI interface for multi-angle input setup. Automatically calculates the raw blanking length of copper bars.

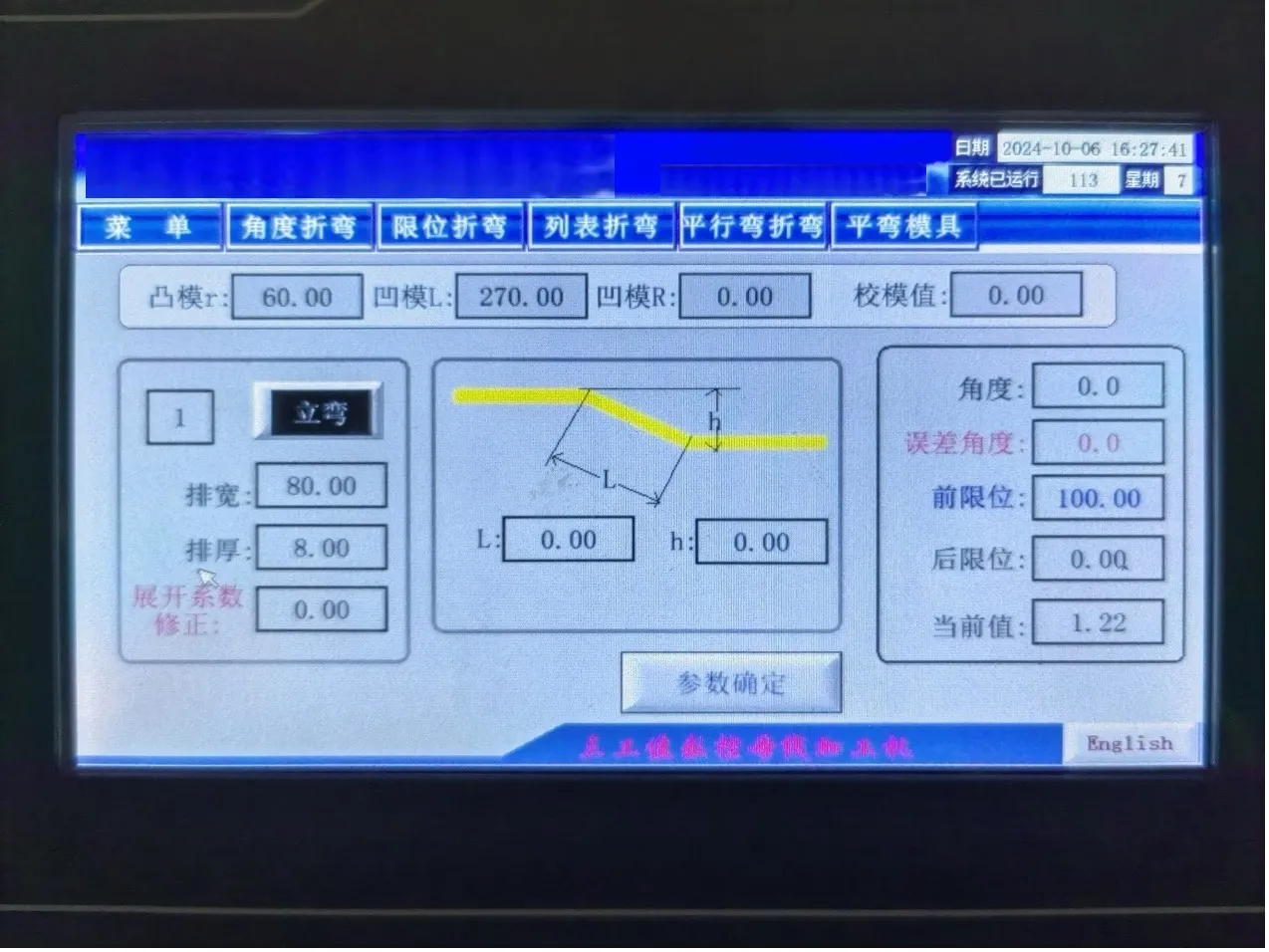

Pressure Diagnostics & Logs
Hydraulic pressure tracing logs and troubleshooting diagnostics panel ensuring high-precision closed-loop control.
CNC Station Tooling & Monoblock Hydraulic Cylinders
Detailed workshop photography showing our robust indexing turret punch block, zero-waste vertical shear guide, and open-cast bending cylinder layout.
8-Station Turret Punch
Heavy cast steel indexing turret head holds 8 standard molds. Swapping dies is done in under 10 seconds.

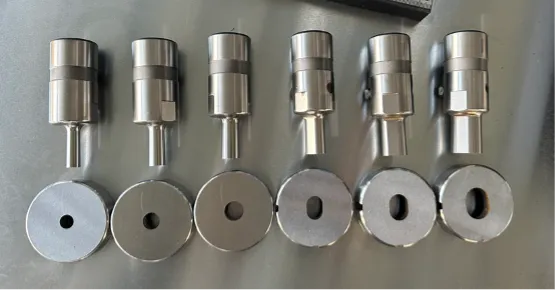

Turret Punch Die Sets
CAD vectors detail our quick-change circular, oblong, and special rectangular punching molds.
Zero-Waste Shearing Unit
Ductile column guide shear block delivers vertical flat cuts with zero waste off-cut slivers.

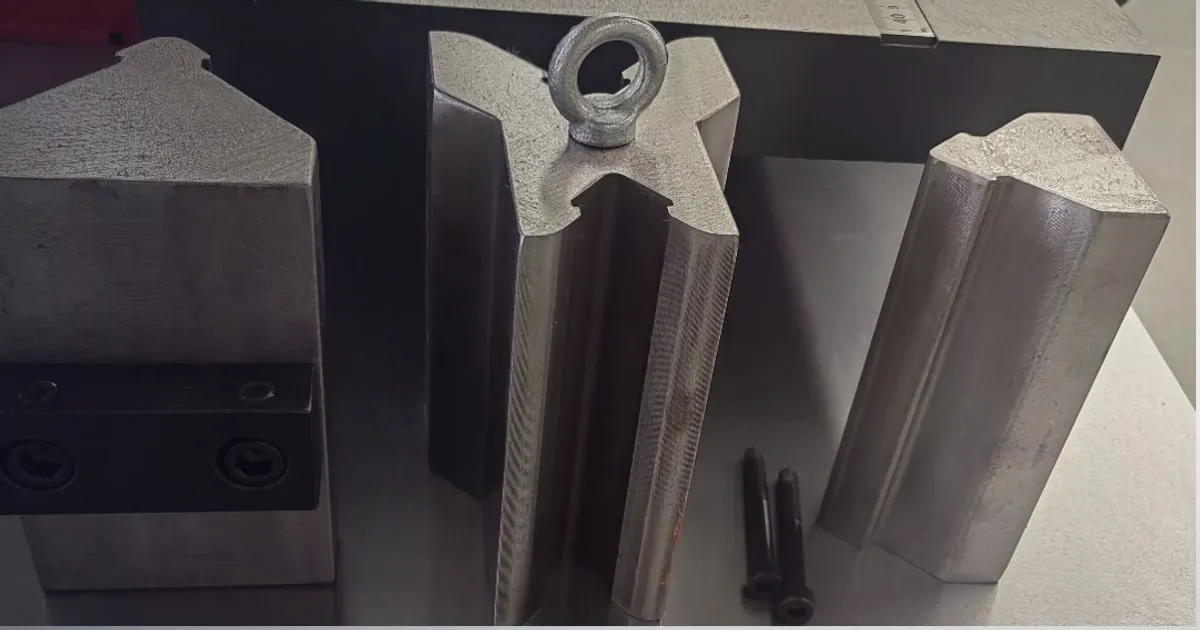

Ductile Iron Open Bending
Cast open-type bender allows rapid tooling swap and yields excellent bending radius visibility.

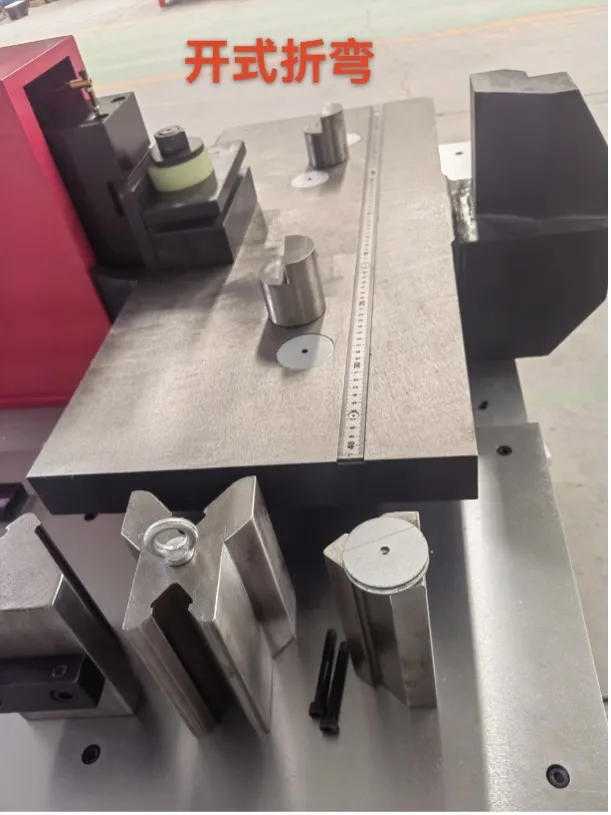

Open Bending Setup
Horizontal flat bending die swap operation. Custom limit switches ensure excellent repeat positioning angles.

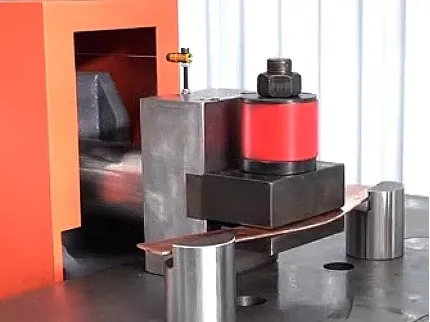

Vertical Bending Swap
Quick mounting of upright vertical bending die block. Delivers exact-angle structural profiles on narrow bars.
Machined Copper Samples & Finished Pieces
Inspect the smooth edge profiles, clean bend geometry, and pitch accuracy on actual copper components manufactured by the DH303-8P.

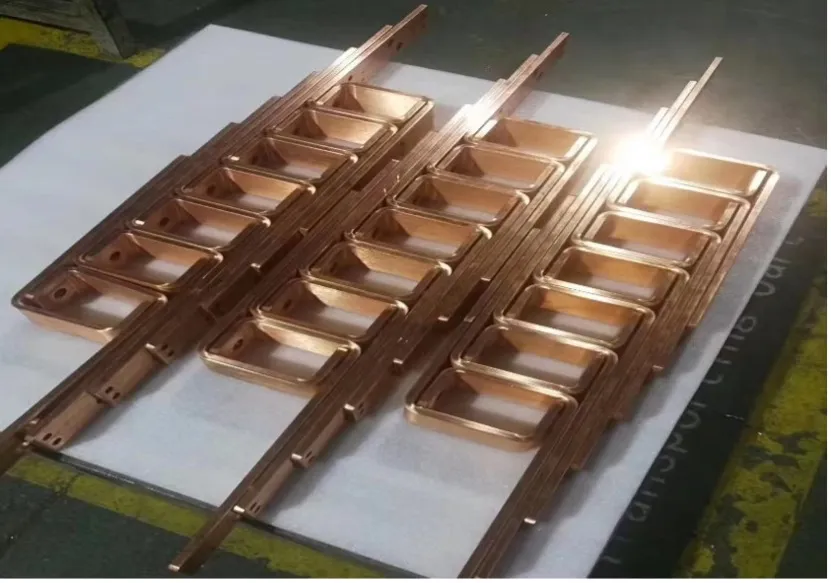

Flat Bending Sample
90° flat bend on T2 copper busbar showing clean forming without cracking or surface thinning.
Vertical Bending Profile
Edge upright vertical bend showing consistent profile height and smooth mechanical deformation lines.

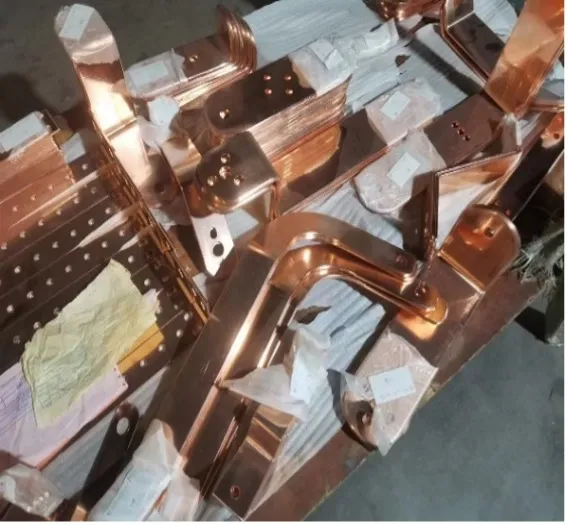

U-Bending Bridge Stack
Compact U-bend bridge connector stack showing pristine surface finish and accurate mechanical spacing.

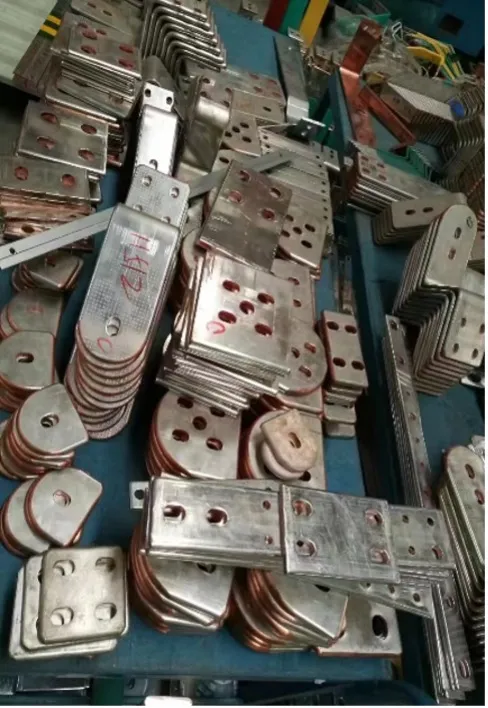

Burr-free Punching Array
High density hole array showing smooth cut surfaces and absolute pitch alignment accuracy.
