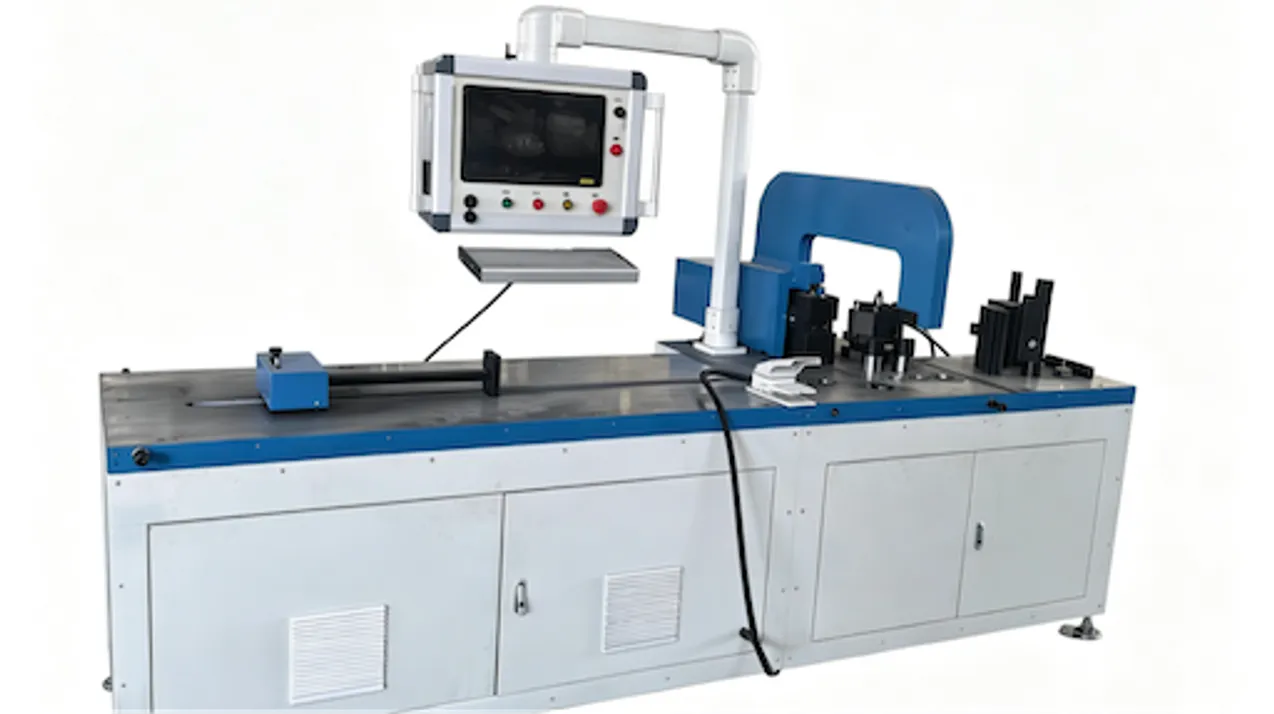

DHAC-BB-H BENDING STATION
Servo-Hydraulic | Flat · Vertical · Twist · Z/U-Bend
High-precision closed-loop servo-hydraulic bending machine. Achieves ±0.2° bending precision on flat, vertical, twisting, and U-bends. Featuring an intelligent auto-compensation system and low-clearance 40mm U-bend tooling.
Certification
CE / ISO 9001
Bending Accuracy
±0.2° (Guaranteed)
Bending Speed
0-5 m/min
⚡ Sourcing Summary: DHAC-BB-H Bender
What Technical Specifications Define the DHAC-BB-H Servo-Hydraulic CNC Bending Machine?
Cross-reference our rigid bending tolerances on the right while exploring specialized custom tooling configurations on the left.
SPECIALIZED BENDING DIES SHOWCASE
Our pre-calibrated proportional valves allow you to swap heavy-duty bending tools quickly to adapt for EV batteries or high-power distribution lines.
Standard ±0.2° flat vertical angle bends on heavy sheets.
Precision edge upright bends for tight busbar cabinets.
Custom twisting dies for complex overlapping grids.
EV battery connection bar punch with ultra-thin profiles.
ANTI-PITFALL BENDING COMPLIANCE CHECK
- Automatic Springback Angle Offset: Optical scales measure cylinder contact force to offset temperature drift automatically.
- Siemens Proportional Servo Control: Ensures stroke travel repeatability accuracy is locked within ±0.02mm.
- Taiwan HIWIN Guides & Bearings: Guide slider positioning limits remain drift-free under stress loads.
B2B Sourcing & Customization Guide
Our direct-factory procurement plan for the DHAC-BB-H ensures rapid returns. The final FOB, CIF, or DAP custom invoice is tailored based on:
- AC Servo Configuration: Single or dual axis closed-loop servo controller systems.
- Local Plant Voltage Configuration: Custom-wound motor grid matches (e.g. 220V/60Hz, 440V/60Hz, 480V/60Hz).
- Custom Die Configurations: Specialized twist-bending, custom tight U-bend parameters, or custom corporate embossing engraving blocks.
DHAC-BB-H Specifications
Verification standard: ISO 9001:2015How Does DH CNC Solve Common Busbar Bending Production Bottlenecks?
How DH CNC offsets physical springback and clearances through intelligent design and Siemens controllers.
PAIN POINT: Angular Deviation due to Fluid Temperature & Thickness Variations
Standard hydraulic benders drift by ±1.0° to ±1.5° as hydraulic fluid heats up during operations, or when copper sheets vary in hardness. This leads to rejected parts and arcing issues in final distribution cabinets.
DH CNC SOLUTION
Real-Time Springback Compensation. The DHAC-BB-H uses high-precision proportional valves coupled to optical glass scale encoders. The Siemens PLC dynamically measures cylinder contact force to calculate sheet thickness resistance, adjusting stroke displacement to ensure ±0.2° accuracy.
PAIN POINT: Inability to Make Compact Bends for New Energy / EV Applications
Modern electric vehicle (EV) battery packs and compact UPS boards demand ultra-tight clearances. Traditional benders are blocked by large mechanical clearance limits (minimum 50mm+ inner widths).
DH CNC SOLUTION
Compact U-Bend Tooling. Our custom-milled ductile iron bending block and thin-profile punch allow operators to execute compact U-bends down to 40mm inner width without crushing the copper.
PAIN POINT: Disconnected Cutting and Bending Workflows
Drafting punch patterns on one software and bending angles on another opens up opportunities for manual input mistakes, resulting in offset holes and structural mismatch during cabinet assembly.
DH CNC SOLUTION
Unified Data Platform. The DHAC-BB-H shares an identical software database with our DHCNC-BP-60 Punching Workstation. Coordinates are computed once and transferred, eliminating error accumulation.
Which Industrial-Grade Components Power the DHAC-BB-H?
Industrial-grade elements sourced strictly from globally verified Siemens, Inovance, HIWIN, Atos, and NSK supply chains.
How Does the DHAC-BB-H Compare Against Traditional Hydraulic Bending Machines in Total Cost of Ownership?
Compare the DHAC-BB-H against legacy induction benders. Make an informed procurement decision.
| Performance Metric | DHAC-BB-H Solution | Traditional Bending Machines |
|---|---|---|
| Bending Angle Precision | ±0.2° | ±0.5° to ±1.5° |
| Y-Axis Repeatability | ±0.02 mm | ±0.05 mm to ±0.15 mm |
| Minimum U-Bend Inner Width | 40 mm | 50 mm to 65 mm |
| Bending Drive Technology | Energy-efficient Servo-Hydraulic Proportional | Standard High-Consumption Induction Hydraulic |
| Main Controller System | Siemens Industrial PLC | Standard Basic micro-controller boards |
| Software Integration | Unified 3D Platform (shared with Punching) | Standalone basic G-code HMI |
What Is the Operator Learning Curve, ROI, and Global Application Scope of the DHAC-BB-H?
An engineering-first evaluation of the DHAC-BB-H servo bender's business impact on switchboard manufacturing, energy efficiency, and grid integration.
4-Hour Operator Learning Curve
Standard hydraulic benders require highly skilled operators to constantly adjust cylinder stroke limits and manually gauge angle deformation to offset copper springback.
The **DHAC-BB-H bending workstation** integrates a high-resolution AC servo backgauge and automatic springback angle compensation. New operators simply import DXF/STEP CAD parameters directly into the touchscreen. The system auto-calibrates folding cycles, allowing standard workers to produce perfect ±0.3° bends within 4 hours of training. For a deep engineering dive on how this works, read our Precision Bending Guide: Managing Copper Springback in Electrical Manufacturing.
Up to 40% Energy Savings & Low Maintenance
Equipped with a **proportional servo-driven hydraulic system**, the DHAC-BB-H consumes electrical energy only during active cylinder strokes. This cuts utility power bills by 35-40% compared to legacy continuous-induction motor pumps.
The unified **monoblock cast ductile iron frame** prevents transit calibration drift, saving $3,000-$5,000 in external technician startup calibration fees at your plant floor. Robust oil seal systems extend component life cycles, driving long-term operational cost reduction.
Switchboard & Grid Compatibility
Specifically designed for medium-to-heavy power transmission grids (switchgear panels, distribution substations, control boxes, battery terminals, and industrial transformer connections).
To ensure zero electrical startup bottlenecks, motor coils and proportional valves are pre-calibrated to your regional industrial power grid—supporting **220V/440V 60Hz** (Mexico & LATAM), **480V 60Hz** (USA & Canada), and **380V/400V 50Hz** (Europe, Asia, Middle East). Shipped in seaworthy vacuum rust-barrier barrier bags.
Visual Quality & Interface Verification
First-hand inspection of actual machined samples, custom bending test profiles, and finished copper pieces.
U-Bend Precision Sample
Compact 40mm inner width U-bend showing clean deformation without structural cracking on heavy T2 copper.

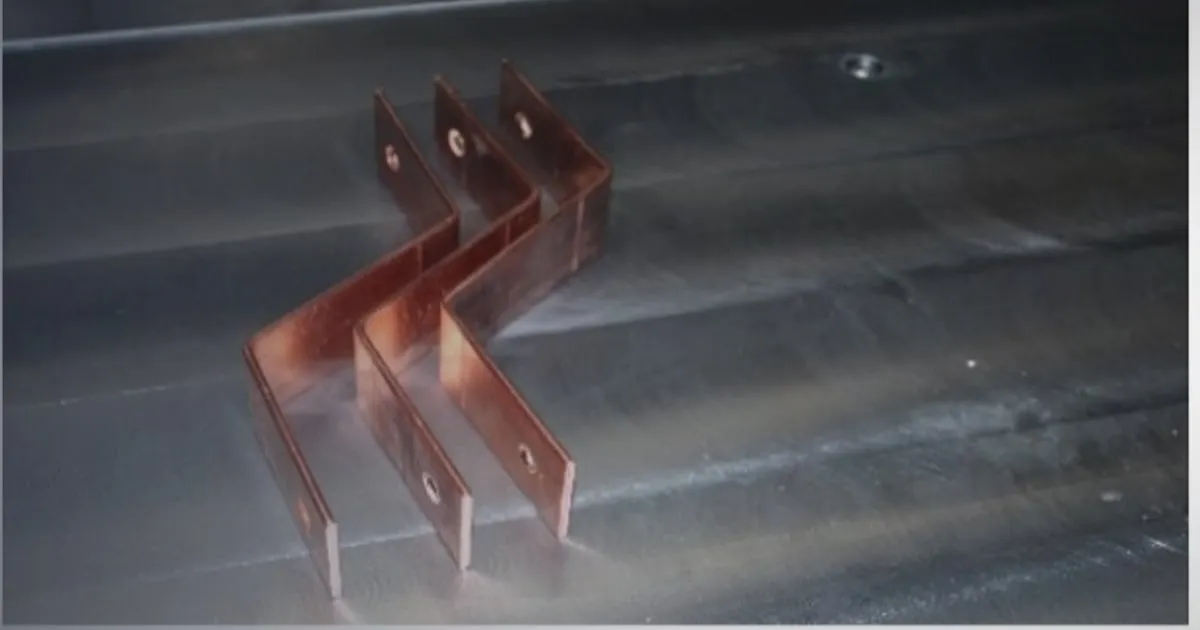

Multi-Angle Busbar Layout
Complex multi-bend connection piece featuring consistent springback control within strict ±0.2° mechanical tolerance limits.
Vertical & Twist Bends
Finished distribution cabinet copper bar illustrating robust vertical offset bends without surface shearing or thinning.
