How to Meet IEC 61439 Standards When Fabricating Switchgear Busbar Systems?

Navigating the stringent requirements of international electrical standards is a permanent challenge for B2B low-voltage switchgear manufacturers. In 2026, the global benchmark for safety and performance remains firmly rooted in the IEC 61439 standard series. Successfully fabricating copper busbars that pass these rigorous verification tests demands more than just quality raw materials; it requires flawless mechanical execution on the factory floor.

Why Are Precision Manufacturing Tolerances Crucial for IEC 61439 Compliance?

Busbar fabrication must preserve the clearances, creepage distances and geometry defined by the verified assembly design. IEC 61439 conformity applies to the complete low-voltage switchgear and controlgear assembly; it is not created by purchasing a CNC machine. The manufacturer should translate the approved design into measurable busbar dimensions and control them through drawing revision, tooling, inspection and assembly records.

What Are the Key IEC 61439 Metrics Impacted by Busbar Fabrication?

When evaluating the impact of mechanical fabrication on switchgear performance, engineering teams must focus on three distinct technical pillars outlined in the standard.

IEC 61439 Requirement	Definition & Objective	How CNC Fabrication Secures Compliance
Clearance Distances	The shortest distance in air between two conductive parts (Phase-to-Phase or Phase-to-Ground).	Precision servo-bending prevents springback variation, ensuring copper bars never encroach on designated safety gaps.

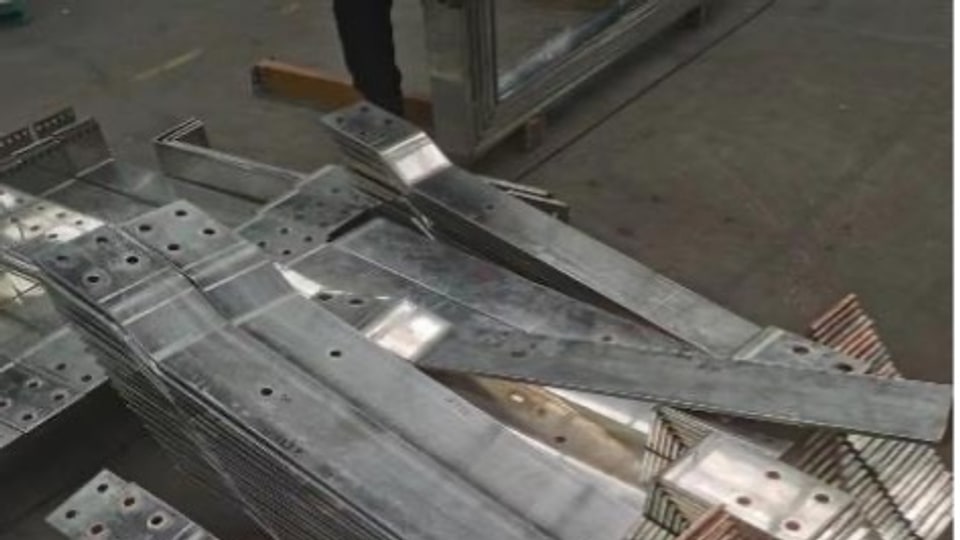

Creepage Distances	The shortest distance along the surface of a solid insulating material between two conductive parts.	Burr-free punching and shearing prevent jagged copper edges that could damage insulators and reduce creepage tracking paths.
Temperature Rise Limits	Ensures components do not exceed safe operating temperatures (e.g., 105°C for bare copper joints).	Perfectly flat contact surfaces at bolted joints minimize electrical resistance, drastically lowering thermal dissipation.

[!IMPORTANT] If you are designing for high short-circuit withstand strengths ($I_{cw}$), any microscopic unevenness at a busbar joint can cause massive electromagnetic repulsion forces to shift the bars during a fault. Review our comprehensive guide on IEC 61439 busbar clearances to understand exactly how to layout your cabinet infrastructure.

How Does Copper Joint Quality Affect Temperature Rise Verification?

Temperature-rise limits and test conditions depend on the applicable assembly requirements, component limits and verified design. Fabrication controls should therefore focus on the characteristics assigned by the design authority, such as joint geometry, flatness, hole position, surface preparation and assembly instructions.

A CNC machine can improve repeatability of specified dimensions, but it does not ensure contact resistance or a successful temperature-rise verification. Those outcomes also depend on material, plating, joint preparation, hardware, torque, enclosure design, ventilation and the verified assembly configuration.

How to Guarantee Long-Term Audit Success?

Maintaining switchgear conformity is an ongoing manufacturing discipline. Confirm the edition and clauses of every cited standard with the project’s design authority or certification body; do not use a machinery supplier’s article as the compliance basis.

An integrated CNC punching and shearing workstation can support a controlled fabrication process when programs, tooling, material and inspection are managed. Use sample-part measurements to decide whether the equipment can hold the tolerances assigned by the approved design.
